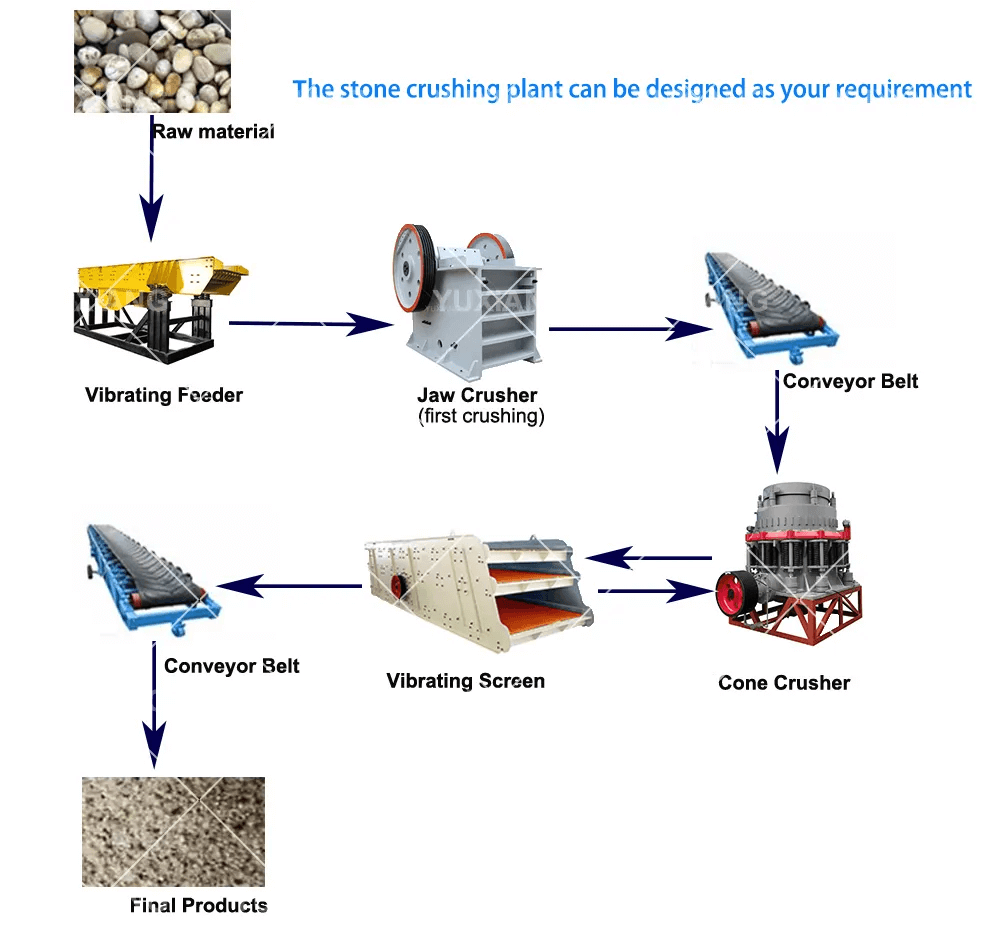

Product Description:The stone crushing plant is mainly consists of Vibrating Feeder, Jaw Crusher, Cone Crusher or Impact Crusher, Vibrating Screen, Belt Conveyor, sand making machine and Control System, etc.
Product Application:It is applied in the crushing and screeing working of movable materials in mining, quarry, mixing and batching plant, road and building construction, highway, railway and subway, and water conservancy etc.
|
Stone Crushing Plant(Engineer Customize for you) |
||
|
Jaw Crusher |
Max.Feeding Size |
500mm |
|
Output Size |
65-160mm |
|
|
Capacity |
50-180t/h |
|
|
Motor Power |
75kw |
|
|
Cone Crusher |
Max.Feeding Size |
145mm |
|
Output Size |
20-50mm |
|
|
Capacity |
110-168t/h |
|
|
Motor Power |
110kw |
|
|
Vibrating Feeder |
Tough SIze |
960x3800mm |
|
Capacity |
90-200t/h |
|
|
Motor Power |
6-11kw |
|
|
Vibrating Screen |
Screen Size |
600x1800mm |
|
Number of Layer |
4 |
|
|
Screen Mesh Size |
6,15,25,45 |
|
|
Capacity |
60-500t/h |
|
|
Motor Power |
22kw |
|
|
Belt Conveyor |
Belt Width |
800mm |
*just for reference
